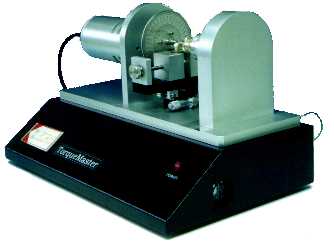

TorqueMaster TU-300

FEATURES * Ideal for torsion testing of biomaterials * Capacity upto torque 2.5Nm * Easy to operate * Graphic user interface * Fully electrical actuated & computer controlled * Compact, benchtop system with small footprint

System Description

Some Examples of Applications

Technical Specifications

Optional Accessories

Ordering Information


System Description

<< Section under Construction >>

Go to start of page


Some Examples of Applications

<< Section under Construction >>


Go to start of page


Technical Specifications

Torque Cell	* depends on capacity
Torsion Angle	Range: 360degrees or continuous
	Resolution: 0.001286°
	Accuracy: >0.01°
Torque Measurement	Resolution: load cell capacity/1024
Operating Requirements	Voltage: single-phase AC 240volts or AC 110volts
	Frequency: 50Hz
	Current: 6A (max) for AC 240volts or 12A (max) for AC 110volts

Specifications may subject to change without notice

Go to start of page


Optional Accessories

KentRidge Instruments (KRi) provide turnkey solutions to meet your testing needs. We also offer a wide selection of custom-built accessories for material testing: grips, bending fixtures, extensiometry, environmental chamber, load cells, software, ... , etc. Contact us with your requirements.

Go to start of page


Ordering Information

1. Basic system, part no.: TU300-100-001
2. Manual X-Y sample mounting stage, part no.: TU300-100-010

Load cell comes with signal conditioners/amplifiers and calibration certificates.
